Home

Overview

Home summarises important information about the system and provides the most important entry points to other functions.

Navigation

After installation, the PROCON-CONNECT start page can be accessed in the browser via the following URL:

http://localhost:16701

After logging in, the home area is opened automatically. Navigation to the home area is also possible at any time via the home button in the navigation bar.

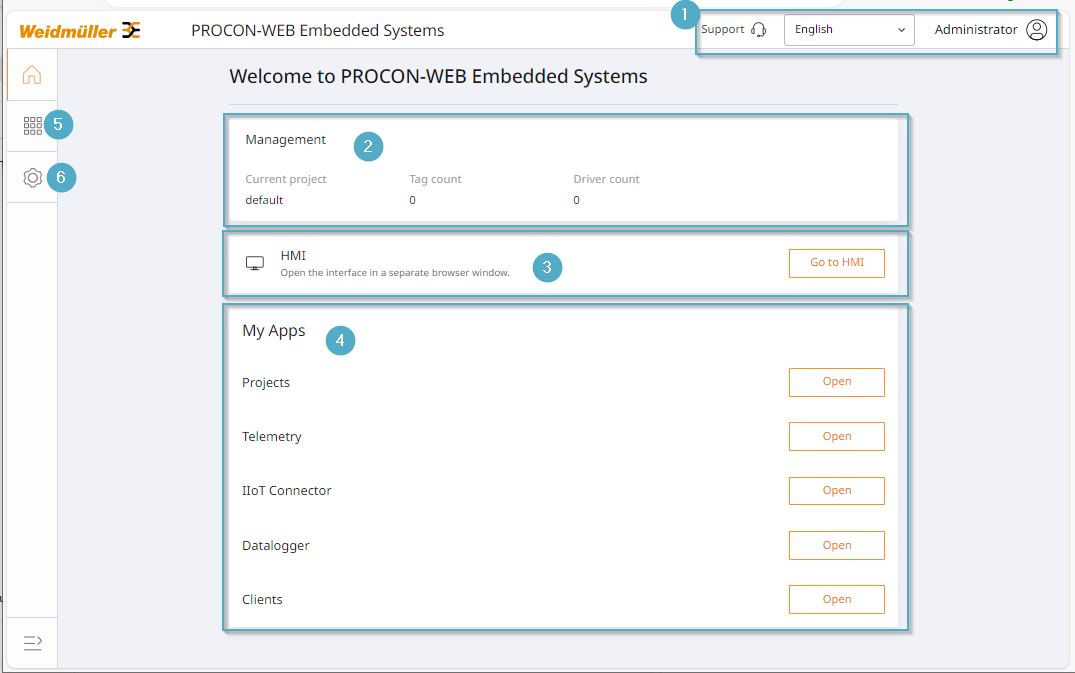

Home

1. Toolbar: Browser access to the Weidmüller Support Centre, option to switch to full screen, language switching and account settings (password change and logout).

2. Administration: Name and information on the currently loaded project.

3. HMI: Call up the runtime of the loaded HMI project in a separate browser window.

4. Apps: Overview of installed and licensed functional apps with navigation options.

5. App menu: Navigation option to the functional apps via the menu.

6. Settings: Navigation to the administrative apps such as service overview, event log and licence management.
